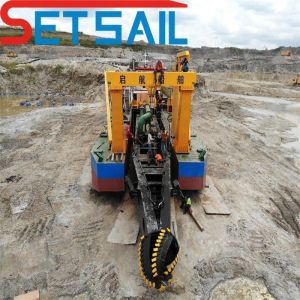

    2000m Discharge Distance CTS Slot Type 26 Inch Cutter Suction Dredger for River Mud

    Ask Lasest Price
    Supply Ability : 2500set /Year
    Certification : ISO 9000, ISO 14001,ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025
    Price : Negotiable
    Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
    • Product Details
    • Company Profile

    2000m Discharge Distance CTS Slot Type 26 Inch Cutter Suction Dredger for River Mud

    Hydraulic cutter 26 inch cutter suction dredger for river mud
    1. 26 inch cutter suction dredger parameter :
    ItemParameterRemark
    Dredging depth18mAdd undereater pump can reach the 30meter
    Solid capacity1800m3According to 20% concentration to count
    Discharge distance2000mAdd the booster station can reach the long distance transportation
    Load draft1.6m
    Total weight380t
    Toal length46m
    Total width10.2m
    Total depth2.7mit means the dimension is from bottom to the deck
    Bottom plate thickness14mmCCS Standard
    Front and back plate thickness20mm
    Side plate thickness12mm
    Deck plate thickness12mm
    Pump brandShijiazhuang industrial pump factoryAccording to the customer's request to choose the brand
    Water flow9000m3we can do the over 20000m3 cutter suction dredger
    Head57m
    Rotate speed400r/m
    Efficiency81.50%
    Suction /Discharge pipe diameter800mmDiameter is not changeless according to the anthentic situation to choice .
    Main engien brand and powerCummins 1950kwCan provide CAT .Weichai so on diesel engine brand
    Rotate speed1900rRotate speed is adjustable
    Auxiliary diesle engine and brandCummins 700kwCan provide CAT .Weichai so on diesel engine brand
    Driving Pump and hydraulic system gerbox BrandHangzhou Fada
    Sup diameter *wall thickness860mm*25mm
    Weight26ton
    Lifting winch first layer pull200KN
    Wire rope diameter28mm
    Swing winch first layer pull150KN
    Wire rope diameter26mm
    Anchor boom length18m
    Spud carriage stroke6m-8m
    Spund carriage pontoon length12m
    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud
    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud


    2. Cutter suction dredger shows :
    All parts on my cutter suction dredger adopts reliable and durable international brand to reach the low failure high efficient. Offering the biggest profit for customers.
    Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
    Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.


    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud
    3. Set sail cutter suction dredger feature :
    1A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on
    2Full hydraulic control with Rexroth. Vickers . all brand from the abroad .
    3Siemens PLC operation with the operation convenience.modular control all data in the one place.
    4Dredger components available in factories to allow short delivery times . all conponents is tested serious .
    5Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard.
    6Western Dredge brand parts. easy to find globally . All the accessories have overseas service points
    7Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on .
    8Gain access to our sales team. design team. manufacture team 24/7. help the customers solves failure in time.
    9The modular design enables fast assembly with seniors engineers .

    4.About Set Sail dredger factory:
    130 years' dredger manufacture workmanship. especially large water flow dredger field .
    2Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger.
    3Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service .
    46 manufacture shops .R&D center, testing pool.
    5Large production. ISO 9001 2015 quality system. CE certification so on .
    6Presences more than 40 countries.
    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River MudHydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud
    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud
    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River MudHydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud5. Certification :
    Hydraulic Cutter 26 Inch Cutter Suction Dredger for River MudHydraulic Cutter 26 Inch Cutter Suction Dredger for River MudHydraulic Cutter 26 Inch Cutter Suction Dredger for River MudHydraulic Cutter 26 Inch Cutter Suction Dredger for River MudHydraulic Cutter 26 Inch Cutter Suction Dredger for River Mud
